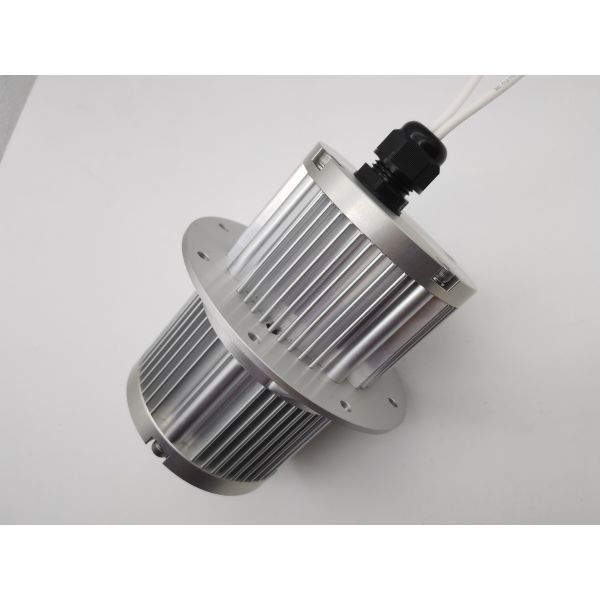

Industrial BLDC Fan Motor W89127 24V / 36V / 48VDC

Industrial Durable BLDC Fan Motor-W89127

This W89 series brushless DC motor(Dia. 89mm), is designed for industrial application such as helicopters, speedboad,commercial air curtains,and other heavy duty blowers which requires IP68 standards.

The significant feature of this motor is it can be used in very harsh environment in high temperature, high humid and vibration circumstances.

Product Key Features:

*Industrial fan motor 1hp power

*Controller embedded

*Water proof feature IP68

*Fins for heat radiation

*Outdoor harsh environment application

*Oxidization Surface treatment

Here is the simple comparisons between AC motor fans and EC motor fans:

Based on above comparisons, it is easier to make decision to upgrade your products into EC motors, which would significantly increase your products competence, spending a little more in initial investment, but a definitely BIG SAVING in future using.

General Specification:

• Voltage Range: 24V/36V/48VDC
• Output Power: 200~1500watts
• Duty: S1,
• Speed Range: up to 4,000 rpm
• Operational Temperature: -20°C to +60°C
• Insulation Grade: Class F, Class H
• Bearing Type: sleeve bearings, ball bearings optional.
• Optional shaft material: #45 Steel, Stainless Steel,
• Housing Type: Air Ventilated, Plastic Housing
• Rotor feature: Inner rotor brushless motor
• Certification: UL, CSA, ETL,CE

Specification:

Application:

Industrial Blowers,aircraft cooling system,heavy duty air ventilators, HVAC, air coolers and harsh environment etc.

Dimension:

Typical Performance:

24v BLDC Fan Motor

Industrial BLDC Fan Motor

Industrial 24v Bldc Motor

Industrial BLDC Fan Motor W89127 24V / 36V / 48VDC Images
